Suction & Delivery Hose
MANUFACTURED IN THE UK
We supply a number of different suction and delivery hoses, varying in weight and construction. Spiral reinforced hoses have the ability to bend through tight radii without kinking and are very durable.

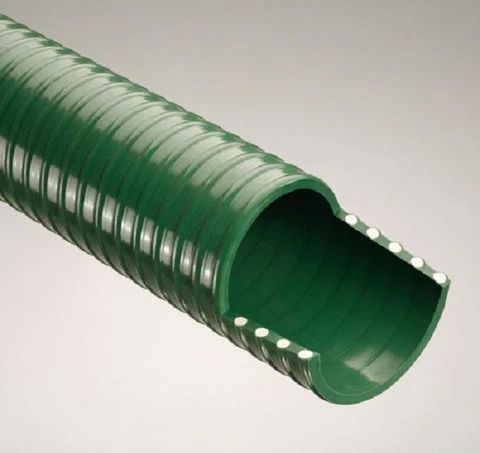

Water Delivery Hose
Application: Delivery and light suction of water, slurry, chemicals and other waste matter. Particularly suitable for horticultural industries.
WHITE PVC SPIRAL ENCASED IN A TRANSPARENT GREEN PVC
| Size | Bend Radius | Working Pressure | Coil Length |
| ¾” | 76mm | 8 bar | 30m |
| 1.0" | 100mm | 6 bar | 30m |
| 1 1/4" | 128mm | 6 bar | 30m |
| 1 1/2" | 152mm | 6 bar | 30m |
| 2.0" | 200mm | 5 bar | 30m |
| 2 1/2" | 252mm | 5 bar | 25m |
| 3.0" | 300mm | 4 bar | 25m |
| 4.0 | 459mm | 4 bar | 25m |
MANUFACTURED IN THE UK
Medium duty delivery hose
Application: General pumping and suction applications, used widely in agriculture, construction and other slurry and water transfer industries.
PVC SPIRAL ENCASED IN A SOLID GREEN PVC
| Size | Bend Radius | Working Pressure | Coil Length |
| 1.0" | 112mm | 6 bar | 30m |
| 1 1/4" | 144mm | 6 bar | 30m |
| 1 1/2" | 171mm | 5 bar | 30m |
| 2.0" | 225mm | 5 bar | 30m |
| 2 1/2" | 283mm | 4 bar | 30m |
| 3.0" | 337mm | 4 bar | 30m |
| 4.0 | 460mm | 3 bar | 30m |
| 5.0" | 562mm | 3 bar | 30m |
| 6.0" | 760mm | 3 bar | 30m |
MANUFACTURED IN THE UK
Oil resistant delivery hose
Application: A heavy duty delivery hose for the transfer of black fuel oils and diesel etc.
PVC SPIRAL WITH A HEAVIER WALL THICKNESS, ENCASED IN A DARK BLUE PVC
| Size | Bend Radius | Working Pressure | Coil Length |
| 1.0" | 150mm | 10 bar | 25m |
| 1 1/4" | 192mm | 9 bar | 25m |
| 1 1/2" | 228mm | 8.5 bar | 25m |
| 2.0" | 300mm | 6.5 bar | 25m |
| 2 1/2" | 378mm | 6 bar | 25m |
| 3.0" | 450mm | 4.5 bar | 25m |
| 3.5 | 540mm | 4 bar | 25m |
| 4.0" | 612mm | 4 bar | 25m |
MANUFACTURED IN THE UK
Clear wire reinforced suction hose.
Application: Suction & delivery of water, slurry, waste materials and also foodstuffs (food grade)
HIGH TENSILE STEEL HELIX ENCASED IN A FOOD QUALITY CLEAR PVC
| Size | Bend Radius | Working Pressure | Coil Length |
| ¾” | 45mm | 7 bar | 30m |
| 1.0" | 60mm | 6 bar | 30m |
| 1 1/4" | 80mm | 5 bar | 30m |
| 1 1/2" | 90mm | 5 bar | 30m |
| 2.0" | 125mm | 5 bar | 30m |
| 2 1/2" | 160mm | 4 bar | 30m |
| 3.0" | 200mm | 4 bar | 30m |
| 4.0 | 300mm | 2.5 bar | 30m |
| 5.0 | 380mm | 2 bar | 30m |
We also stock & supply a variety of specialist industrial hoses for use in applications including:
- Marine
- Shot Blast
- Automotive (including radiator hose)
- Diesel drop
- Steam
- Brewing
- Refrigeration
Looking for a small quantity? Buy online now at www.transamshop.co.uk
